Logic Lock
Logic Lock

Explanation

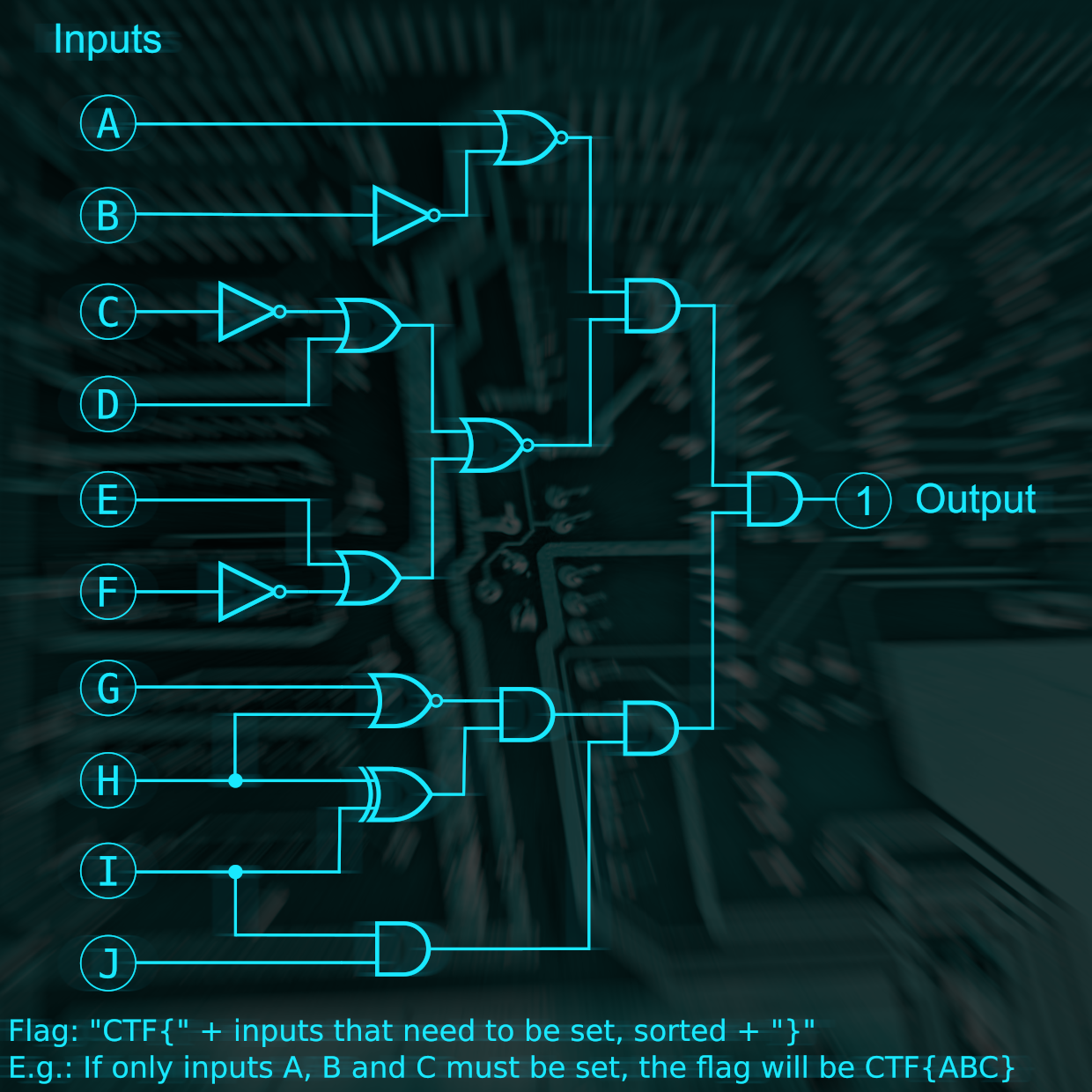

The attachment contains an image with, as it’s name suggests, logic gates. Logic gates perform basic logical functions that are fundamental to digital circuits. They make decisions based on a combination of digital signals coming from its inputs.

I’ll give an explantation of the six most common logic gates.

OR

OR Gate
OR Gate

The OR gate. The output is true if at least one of the inputs is true. If both inputs are false, then the output is false.

AND

AND Gate
AND Gate

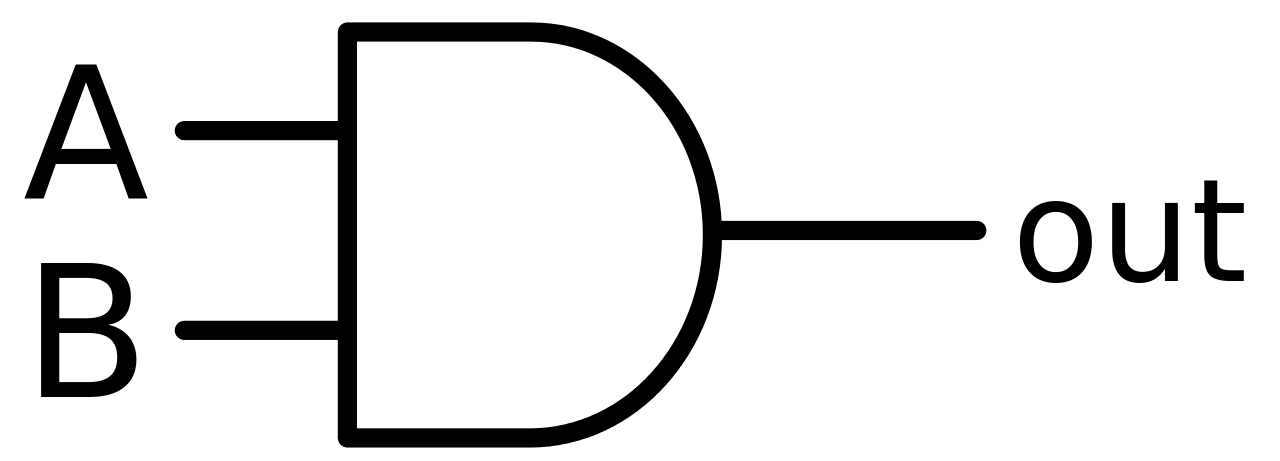

The AND gate. The output is true if both inputs are true. If one or no input is true, the output is false.

NOT

NOT Gate
NOT Gate

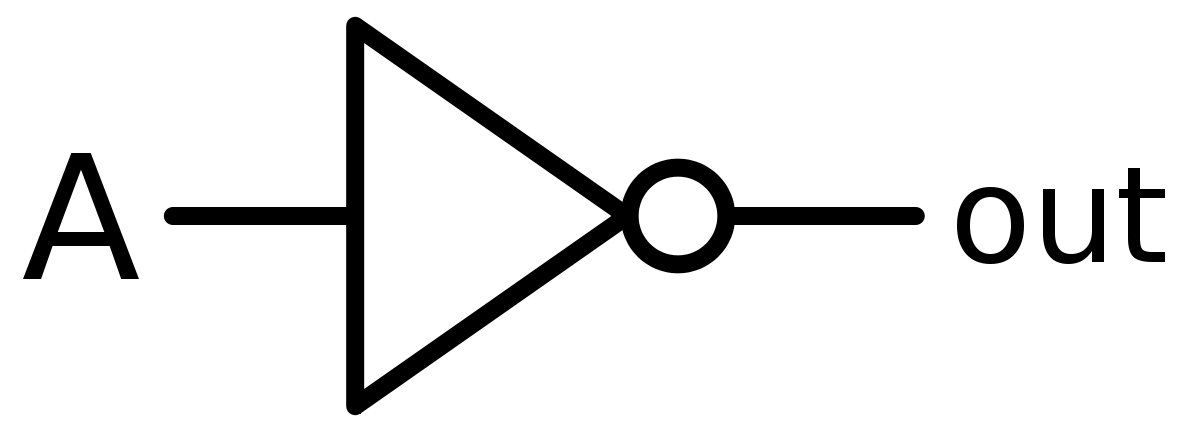

The NOT gate, also know as an inverter. The output is true if the input is false. If the input is true, the output is false.

XOR

XOR Gate
XOR Gate

The XOR gate. The gate behaves just like the OR gate, with the only difference being that it is when both inputs are on.

The output is true is one of the two inputs is on, but not both. If either both inputs are true, or if both inputs are false, the output is false.

NOR

NOR Gate
NOR Gate

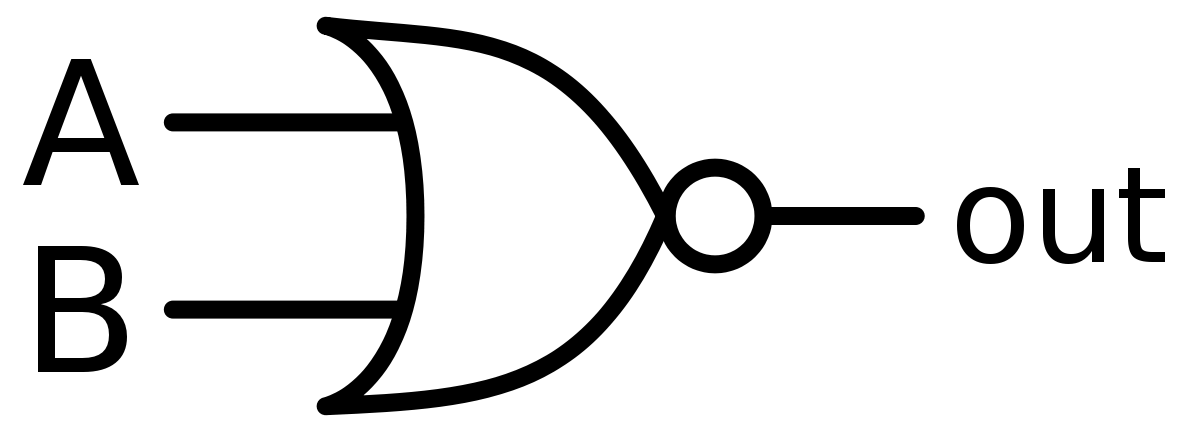

The NOR gate. This gate is an OR gate, followed by a NOT gate.

The output is true if both inputs are false. If one or more of the inputs are true, the output is false.

NAND

NAND Gate
NAND Gate

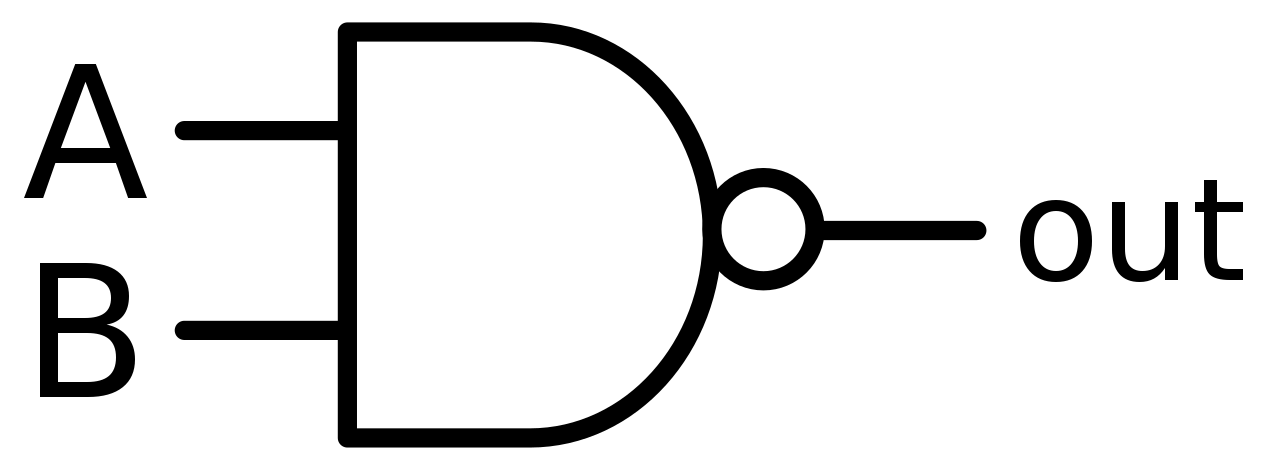

The NAND gate. This gate is an AND gate, followed by a NOT gate.

The ouput is true if none or one of the inputs is true. If both inputs are true, the output is false.

Solution

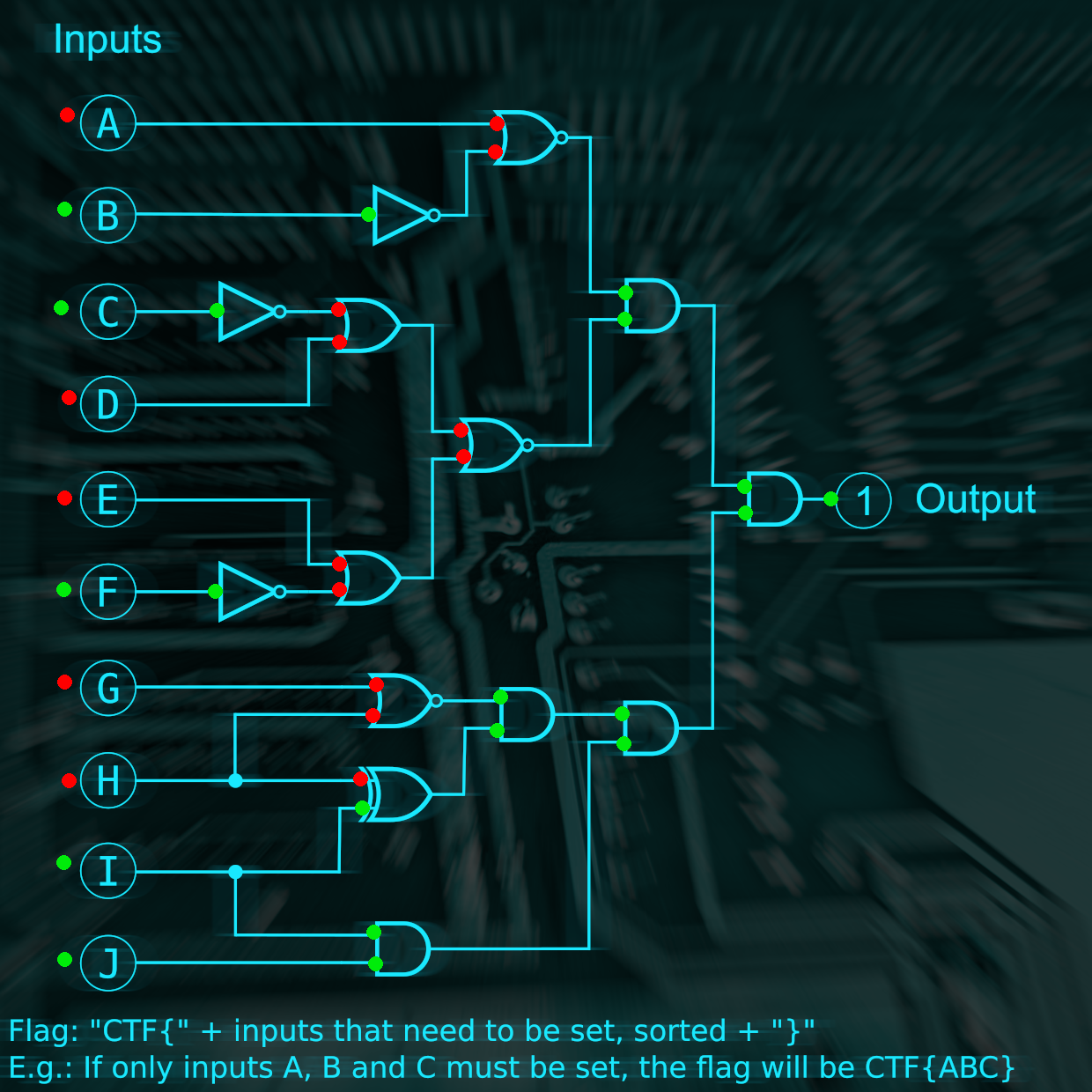

Now that we now what these gates mean, we can work back from end to see what the inputs should be.

Logic Lock Solved
Logic Lock Solved

We find that the inputs BCFIJ should be set, so the resulting flag would be CTF{BCFIJ}.
